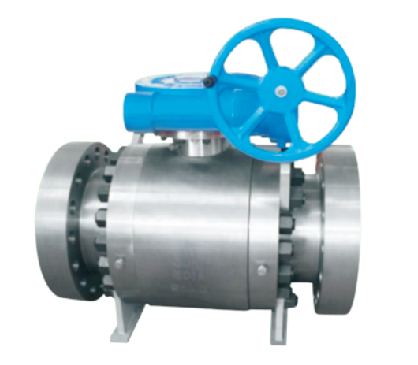

法兰连接锻钢固定软密封球阀系列 Q347F

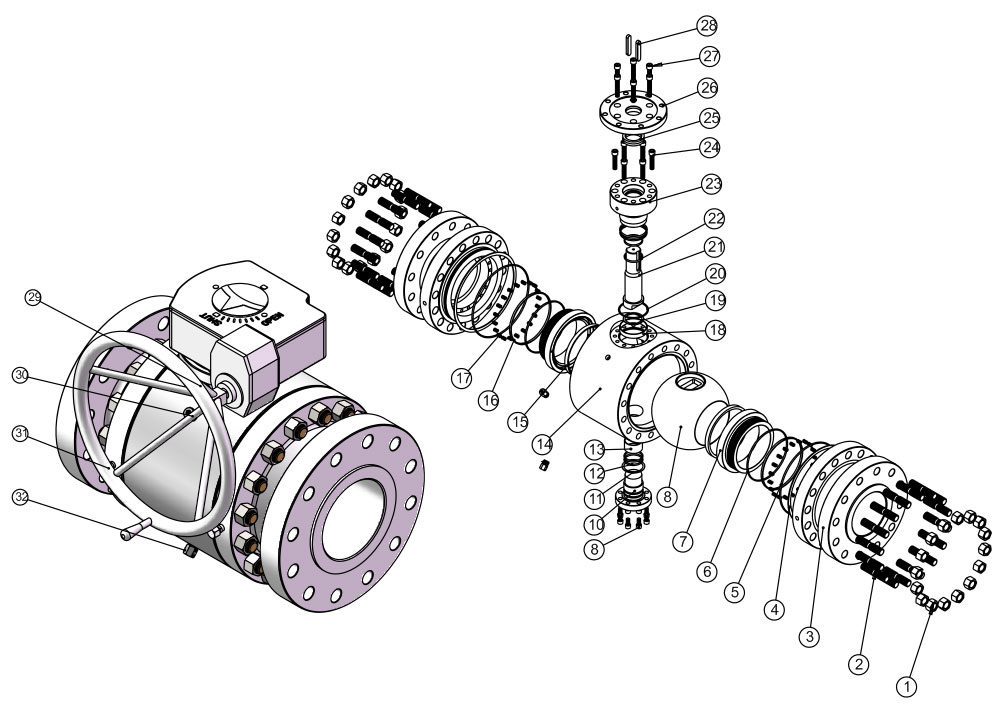

主要零件和材质 Main parts and materials

产品结构特点 Construction features

1、抗硫化应力裂化：阀门接触介质的材料都是按美国腐蚀工程师协会NACE01-75的标准进行选择，且按标准进行表面镀镍，能满足硫化环境工况的要求。
2、用聚合物或金属作密封材料，在高温、高压工况具有优良的密封性能。
3、设置填料箱，防止阀门内腔压力异常升高而使阀杆飞出，增置倒密封结构，能确保填料可靠密封。
4、广泛适用于化工、炼油、油气、天然气、钢铁等介质管路。
1. Resistance to sulfide stress cracking: valve contact medium materials are according to the American association of corrosion engineers NACE01-75 standards for choice, and according to the standard to nickel plating on the surface, can satisfy the requirement of curing environment conditions.
2. Sealing material with polymer or metal, excellent sealing performance in high temperature and high pressure condition.
3. Set the stuffing box to prevent the pressure of the inner cavity of the valve to rise and make the stem fly out, adding the backsealing structure to ensure the packing is reliable.
4. Widely applicable to chemical, oil, gas, natural gas, steel and other media pipelines.

产品特征 Spericfications

适用介质：水、气、油品、天然气和酸碱腐蚀性介质
适用温度：-196~150℃
驱动方式：手动、气动、电动、液动等
公称压力：1.0~16.0MPa
公称通径：DN50~1200mm
Applicable media: water, gas, oil, gas and acid and alkali corrosive medium
Applicable temperature: -196~150℃
Driver: manual, pneumatic, electric, hydraulic, etc
Nominal pressure: 1.0~16.0MPa
Nominal size: DN50~1200mm

技术规范 Technical specification

试验压力 Test prssure

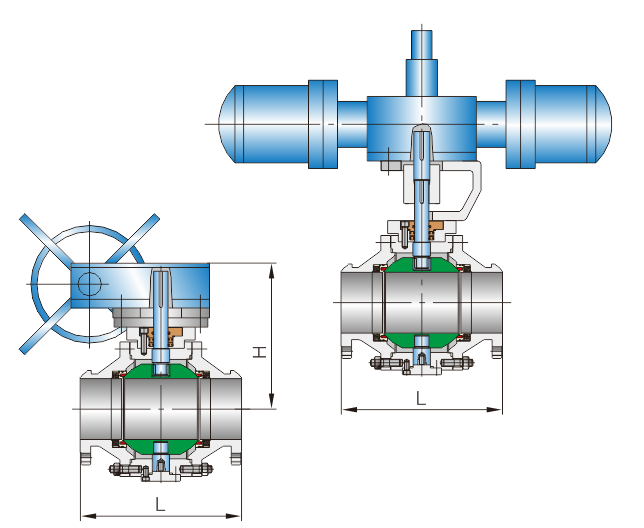

球阀结构长度和外接尺寸 Main connection dimensions
